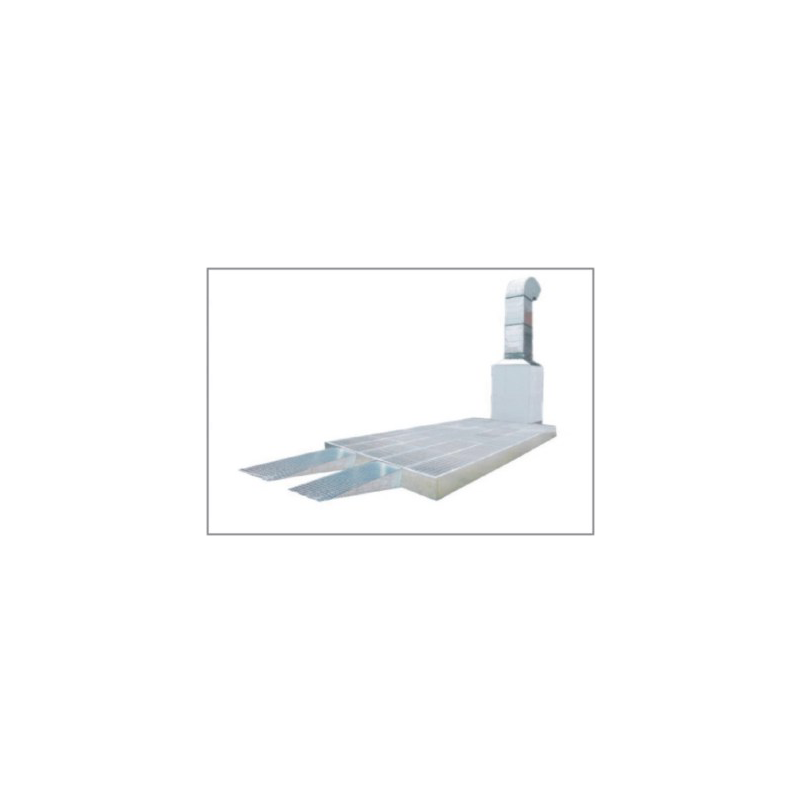

PRBSM221 – PREPARATION BOOTH WITH BASE
DaTo PRBSM221 Preparation Booth with Base is a professional-grade paint preparation room designed to ensure a clean, controlled, and dust-free environment before vehicle painting. Engineered for modern body shops and service centers, it enhances workflow efficiency while maintaining high standards of hygiene and surface preparation quality. Its flexible structural design allows easy installation in various workshop environments.
It is widely used as a Brake Service Machine in the UAE, supporting integrated workshop operations alongside automotive brake equipment in Dubai systems. Ideal for workshop brake tools in the UAE, it contributes to an efficient brake maintenance system in Dubai and advanced garage brake machines in the UAE.
Specifications
| Category | Specification |
| Model | PRBSM221 |
| Internal Size (L×B×H) | 6300 × 3450 × 2800 mm |
| External Size (L×B×H) | 7800 × 3450 × 3350 mm |
| Loading Capacity | 700 kg / wheel |
| Surface Area | 20 m² |
| Metal Basement | 350 mm |
| Drive-in Ramps | 2 × 520 mm width |
| Ceiling Lighting | 6 units, 4×36W |
| Brightness | 500 Lux |
| Pre Filters | Fiber glass, Paint-Stop Filters |
| Ceiling Filters | EU5 Fine Filters (6 units) |
| Floor Filters | Fiber glass, Paint-Stop Filters |
| Motor | 1 × 7.5 kW, 970 RPM, 380V, 50Hz |
| Fan Capacity | 25,000 m³/h |
SKU
PRBSM221
Category PREPARATION BOOTH
