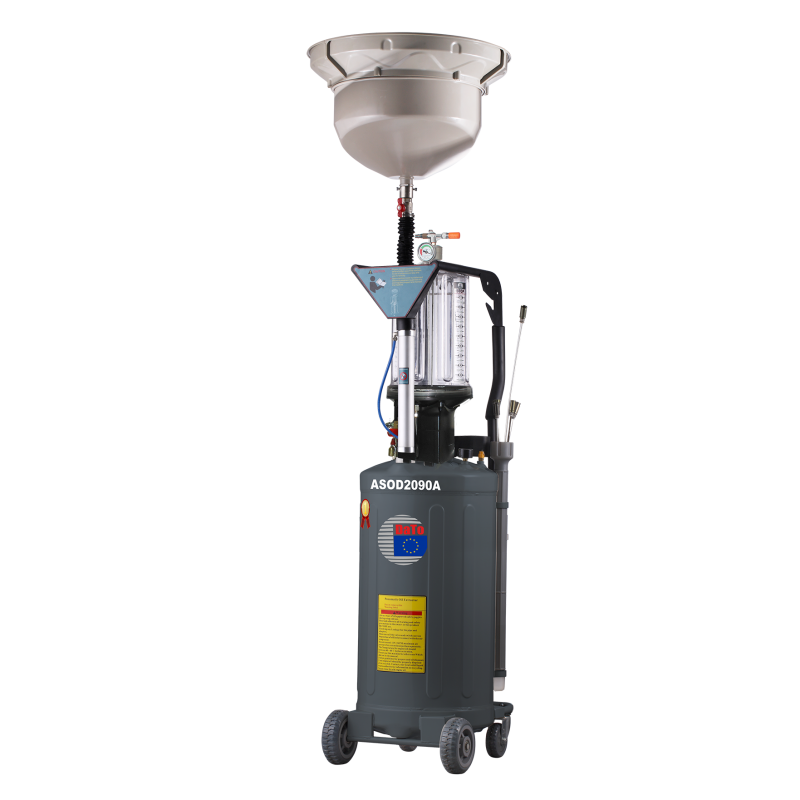

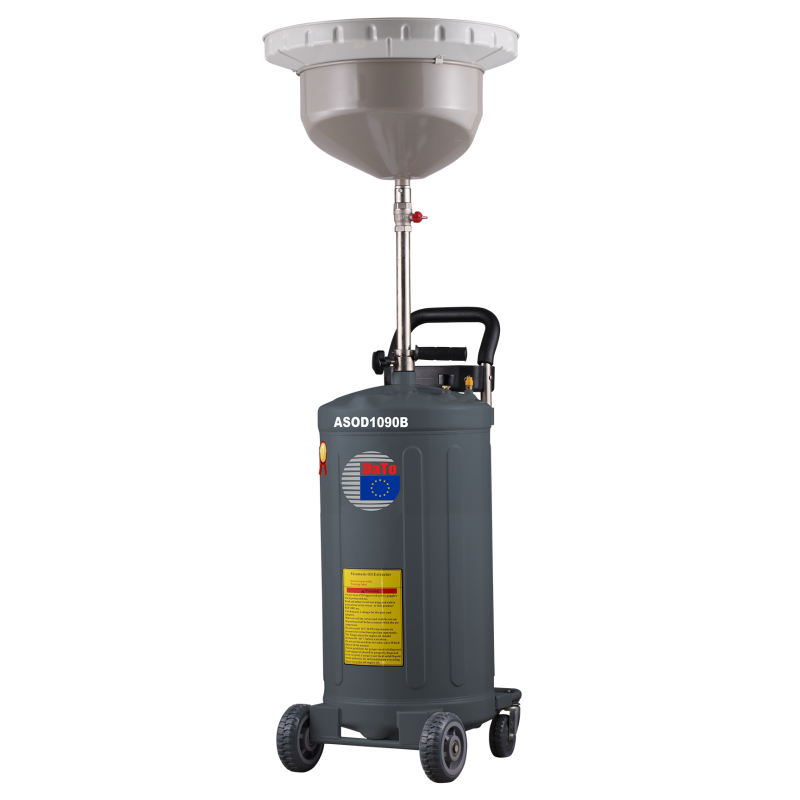

OIL DRAINER SERIES ASOD
The DaTo ASOD Series is a highly efficient and versatile Oil Extractor/Drainer designed for fast and clean removal of used engine oil. The system allows oil drainage through an overhead funnel or vacuum extraction using a suction hose with flexible probe adapters. These adapters make it easy to extract oil from narrow openings such as dipsticks, while the long hose ensures quick and convenient operation. Waste oil disposal is made simple by connecting an air supply to the pressurized tank. It is widely used as a reliable Oil Drain Equipment in the UAE and for automotive oil disposal for professional workshops.
Features
- Heavy-duty 15″ × 5.5″ receiver funnel
- Adjustable height from 46″ to 70″
- Two 6″ fixed axle wheels + two swivel casters for easy mobility
- 8″ discharge hose with shut-off valve
- Integrated fluid level gauge on the hose
- Air pressure control valve
- Pneumatic modular cylinder (high-density material, max working temperature 120°C)
- Vacuum generator with high efficiency performance
- Smart design with up to 30% higher efficiency than standard brands
- High suction speed (up to 73% higher than competitors)
- Anti-explosion safety valve
- Suitable for workshop oil drainer and oil extraction equipment in Dubai applications
Specification
| Description | ASOD1090B | ASOD2090A | ASOD2090B |
| Theoretical Tank Capacity | 90 L / 23.8 US Gallon | 90 L / 23.8 US Gallon | 90 L / 23.8 US Gallon |
| Actual Tank Capacity | 85 L / 22 Gallon | 85 L / 22 Gallon | 85 L / 22 Gallon |
| Air Inlet Pressure | 6–8 bar / 87–116 psi | 6–8 bar / 87–116 psi | 6–8 bar / 87–116 psi |
| Air Inlet Connection | 1/4″ | 1/4″ | 1/4″ |
| Vacuum Degree | -1 to 0 bar | -1 to 0 bar | -1 to 0 bar |
| Air Pressure for Oil Discharge | 0.7–1 bar / 10–15 psi | 0.7–1 bar / 10–15 psi | 0.7–1 bar / 10–15 psi |
| Oil Temperature Range | 40–60°C | 40–60°C | 40–60°C |
| Suction Speed (probe Ø8, oil 60°C max) | 6.5 L/min (1.72 US Gallon/min) | 6.5 L/min (1.72 US Gallon/min) | 6.5 L/min (1.72 US Gallon/min) |
| Modular Winder Capacity | 6.5 L/min | 11–12 L (2.9–3.2 Gallon) | 11–12 L (2.9–3.2 Gallon) |
| Net Weight / Gross Weight | 29 / 33 kg | 36 / 44 kg | 36 / 44 kg |
DaTo ASOD Series is engineered for professional-grade performance in modern service environments. It is widely used in service station oil drainers, workshop oil drainer, and oil extraction equipment in Dubai applications, ensuring clean, efficient, and reliable oil handling operations.
