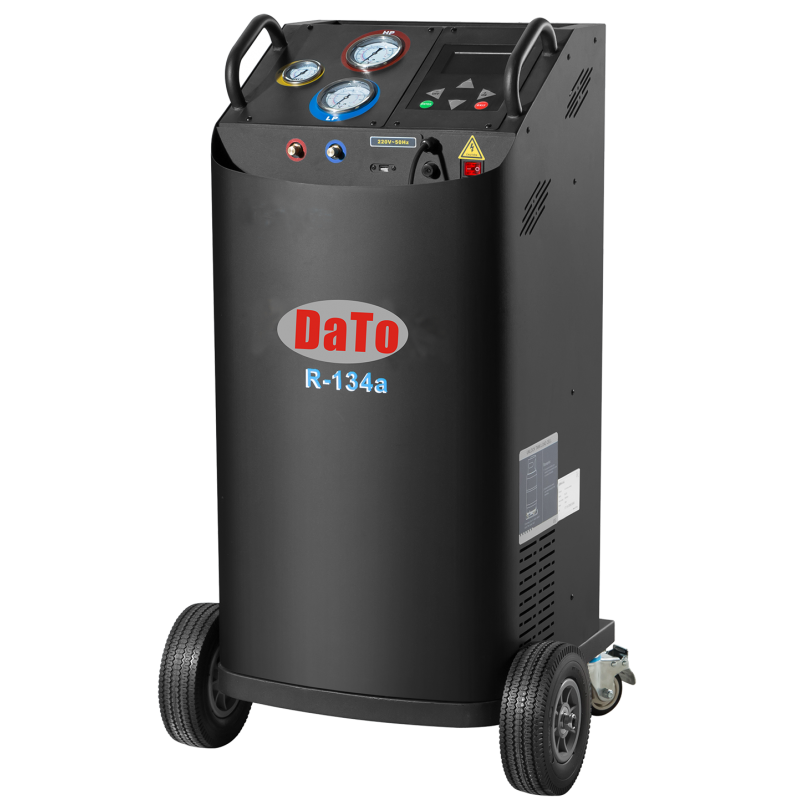

AC SERVICE STATION – ACMAS302
DaTo ACMAS302 is an entry-level AC Service Station designed for new A/C service professionals and workshops seeking cost-effective yet reliable usage. The system provides fully automatic refrigerant recovery, vacuuming, oil injection, and gas charging functions, ensuring efficient and accurate air conditioning maintenance. It is an ideal choice for AC Service Station in the UAE and car AC servicing machine applications in modern automotive workshops.
Built with an intelligent control system, integrated pipeline manifold, and comprehensive vehicle database, the ACMAS302 delivers dependable performance while simplifying daily service operations. It is widely used as a professional refrigerant recovery system and automotive AC equipment in Dubai.
Functions
Main Functions
- Tank Fill
• Refrigerant Recovery
• Vacuum Operation
• Oil Injection
• Refrigerant Charging
• Fully Automatic Operation
Optional Functions
- System Flush & Compressor Oil Recovery
• Vacuum Leak Test
• 120 L/min Vacuum Pump
• UV Dye Injection
• HFO-1234yf Compatibility
Features
- Heater band for improved refrigerant management
• Hand valve-free operation for convenience and safety
• Extensive vehicle database with free updates
• Highly integrated pipeline manifold design
• Built-in condenser and cooling fan
• Pressurization system for faster used oil discharge
• Automatic service reminder system for preventive maintenance
• Fully automatic operation for improved workshop efficiency
• Ideal for AC gas recharge machine applications
Specifications
| Parameter | Details |
| Input Power | AC220V±10%~50/60Hz or AC110V±10%~60Hz |
| Recovery Rate | ≥95% |
| Compressor Power | 3/8 HP |
| Vacuum Pump Capacity | 60 L/min |
| Gas Cylinder Load Cell Accuracy | ±10 g |
| Gas Cylinder Capacity | 10 kg |
| New/Used Oil Bottle Capacity | 250 ml / 400 ml |
| Oil/UV Bottle Load Cell Accuracy | ±5 g |
| Thermal Printer | Included |
| Maximum Pressure | 20 bar |
| Charging Speed | 2 kg/min (Max.) |
| Display | 4.3″ TFT Full Color LCD |
| High Pressure Gauge Range | -1 ~ 30 bar |
| Low Pressure Gauge Range | -1 ~ 16 bar |
| Refrigerant Recovery Speed | 250 g/min (Average) |
| Package Dimensions | 630 × 670 × 1060 mm |
DaTo ACMAS302 is engineered to deliver reliable, accurate, and efficient automotive air conditioning service operations. Its advanced automation, high refrigerant recovery efficiency, and user-friendly design make it an ideal AC Service Station in the UAE for modern workshops. The system also serves as a dependable refrigerant recovery system, helping workshops maintain environmental compliance and service quality. With its comprehensive features and automated operation, ACMAS302 is a trusted AC gas recharge machine in the UAE for automotive service centers seeking productivity, accuracy, and long-term reliability.
