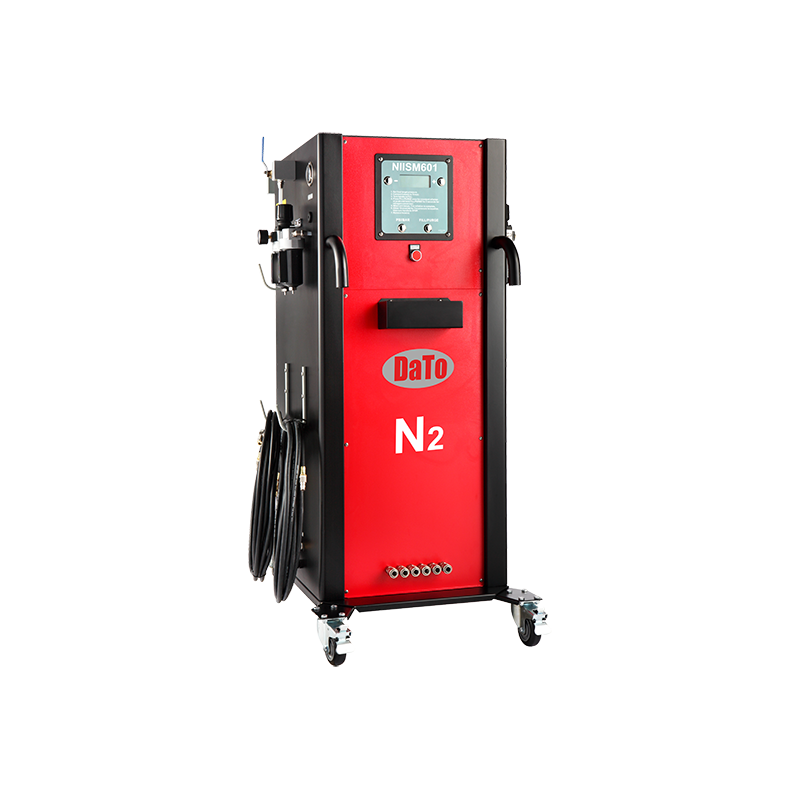

NIISM601 – NITROGEN INFLATOR – HEAVY VEHICLE
The DaTo NIISM601 Nitrogen Inflator is a high-performance nitrogen generation and tyre inflation system designed specifically for trucks, buses, and other commercial vehicles. The machine generates nitrogen directly from compressed air and accurately displays tyre pressure and nitrogen purity levels, ensuring optimal tyre performance and safety.
Engineered for high-volume commercial operations, the system can simultaneously inflate up to six wheels, making it an ideal Nitrogen Inflator in the UAE for fleet operators, transport companies, and heavy vehicle service centres. With advanced automation, high nitrogen output, and simple operation, it is widely used as a professional tyre nitrogen machine in Dubai for maintaining commercial vehicle tyres.
Features
- Microprocessor-controlled operation for precise performance
• Designed for trucks, buses, and commercial vehicles
• Simultaneous nitrogen inflation for up to 6 wheels
• Direct nitrogen generation from compressed air
• Displays tyre pressure and nitrogen purity levels
• External nitrogen storage tank capability for higher capacity
• High output performance with rapid tyre inflation
• Large backlit LCD for easy monitoring
• Automatic tyre inflation functionality
• Nitrogen purity testing port included
• Ideal for heavy vehicle tyre inflators in the UAE applications
• Suitable for a professional nitrogen tyre filling system in Dubai operations
Technical Data Summary
| Parameter | Specification |
| Application | Light Truck, Bus |
| Built-in Automatic Tire Inflator | Yes |
| Power Requirement | 100Vac/240Vac, 50/60Hz |
| Power Consumption | 110VA |
| Operating Temperature Range | -20°C to 70°C |
| Maximum Compressed Air Input | 217 PSI / 15 bar |
| Compressed Air Input Flow | 2200 L/min (78.0 cfm) |
| Nitrogen Purity | 95–99+% |
| Nitrogen Output | 508 L/min (17.9 cfm) |
| Maximum Nitrogen Pressure in Tank | 174 PSI / 12 bar |
| Maximum Inflator Set Pressure | 162 PSI / 11.2 bar |
| Minimum Inflator Set Pressure | 5 PSI / 0.3 bar |
| Over Pressure Setting (OPS) | 0–29 PSI / 0–2.0 bar |
| Nitrogen Purge & Fill Cycle (N2P) | 0–9 |
| Inflator Accuracy | ±1 PSI / ±0.07 bar |
| Units of Measurement | PSI / bar / kPa |
| Pre-Filters | Yes |
| Internal Nitrogen Storage Tank | No |
| External Nitrogen Storage Tank | Yes |
| Inflator Display | Large Backlit LCD |
| Nitrogen Outlets | 6 |
| 8m Hose with Closed Chuck | 4 |
| Nitrogen Purity Test Port | Yes |
| Adjustable Lower Purge Pressure Limit | Yes |
| Auto-Start Inflation | Yes |
| Automatic Zero Drift Adjustment | Yes |
| Vandal-Resistant Mechanical Switches | Yes |
| Net Weight | 323 kg |
| Gross Weight | 362 kg |
| Dimensions (H × W × D) | 1315 × 730 × 1000 mm |
DaTo NIISM601 combines advanced nitrogen generation technology, high-output performance, and intelligent control features to deliver efficient tire inflation for commercial vehicles. Its robust construction and multi-wheel capability make it a dependable truck tire inflator in the UAE for workshops and fleet maintenance facilities seeking productivity, accuracy, and long-term reliability.
