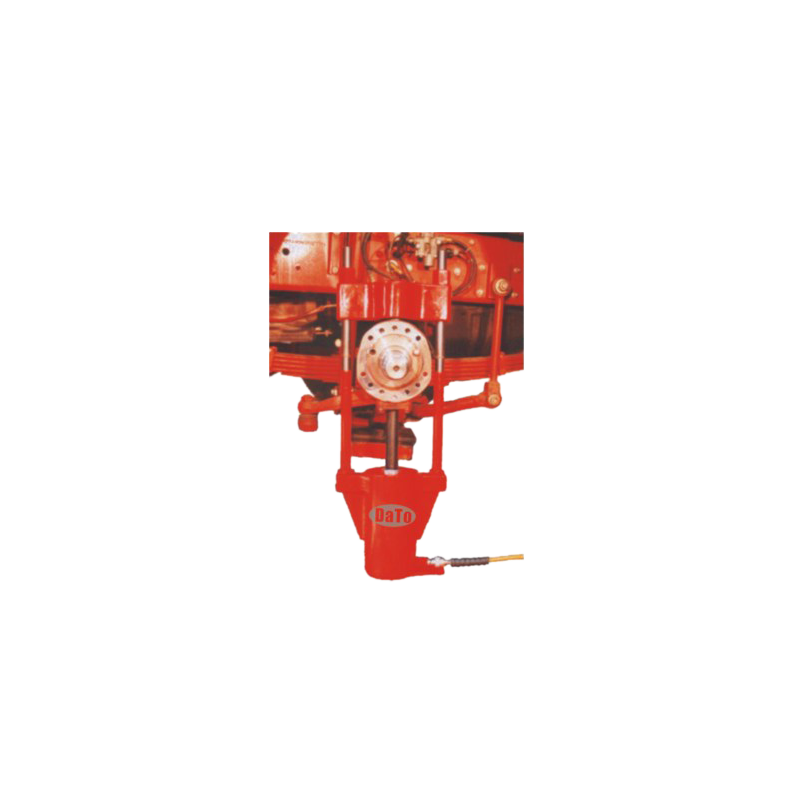

Kingpin Press DKP150/175
The Kingpin Press is a robust and maintenance-free hydraulic solution designed for the efficient removal and installation of kingpins directly on fitted axles. Engineered for heavy-duty applications, it can be used as either a mobile or a stationary unit, making it ideal for truck and commercial vehicle workshops. Supplied with accessories compatible with popular truck axle configurations, this Kingpin Press in the UAE delivers reliable performance for demanding service operations.
Widely used for hydraulic kingpin press in Dubai, truck suspension repair in the UAE, heavy vehicle maintenance tools in Dubai, and workshop hydraulic press in the UAE, the DKP series ensures precision, durability, and ease of operation.
Key Features
- Heavy-duty hydraulic kingpin removal and installation system
- Suitable for use on fitted truck axles
- Robust and maintenance-free construction
- Can be used as a mobile or stationary press
- Designed for commercial vehicle and truck workshops
- Compatible with a wide range of popular truck axles
- High thrust force for demanding suspension repair applications
- Reliable and easy-to-operate hydraulic mechanism
Specifications
| Parameter | DKP175 | DKP150 |
| Thrust Force | 73 Ton | 50 Ton |
| Stroke | 115 mm | 115 mm |
| Piston Diameter | 65 mm | 50 mm |
| Traverse Bore | 55 / 70 mm | 55 / 65 mm |
| Distance Between Stay Bolts | 250 mm | 235 mm |
| Length of Stay Bolts | 730 mm | 600 mm |
| Connecting Thread | R3/8″ 18 NPT | R3/8″ 18 NPT |
| Weight (Without Transport Cart) | Approx. 70 kg | Approx. 50 kg |
