TESTLANE SERIES
DaTo set its footprint and had laid its benchmark in providing the most reliable Testing equipment especially for car testing lane in the UAE to both private and public sector and catering to the testing standards of different countries. The Most robust construction Of the machine, With highly durable parts and tested and confirmed stability Of the software that integrates and provides optional addition of Testing Components for a growing test center facility proves DaTo Test lanes to be the right choice for any testing bay requirements.
SPECIFICATIONS
|
PARAMATERS |
3 Tons Test Line |
10 Tons Test Line |
15 Tons Test Line |

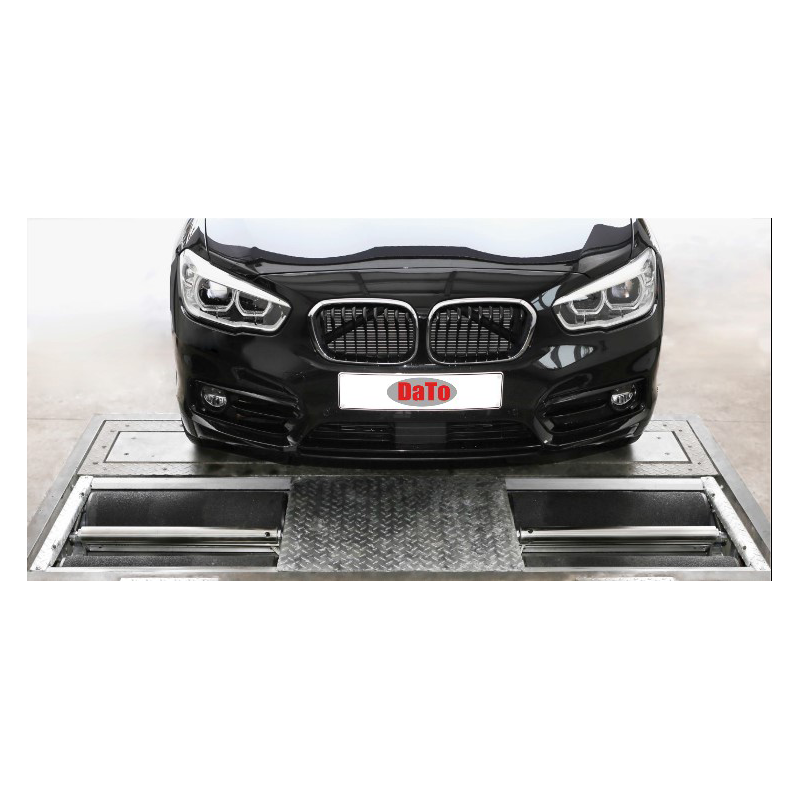

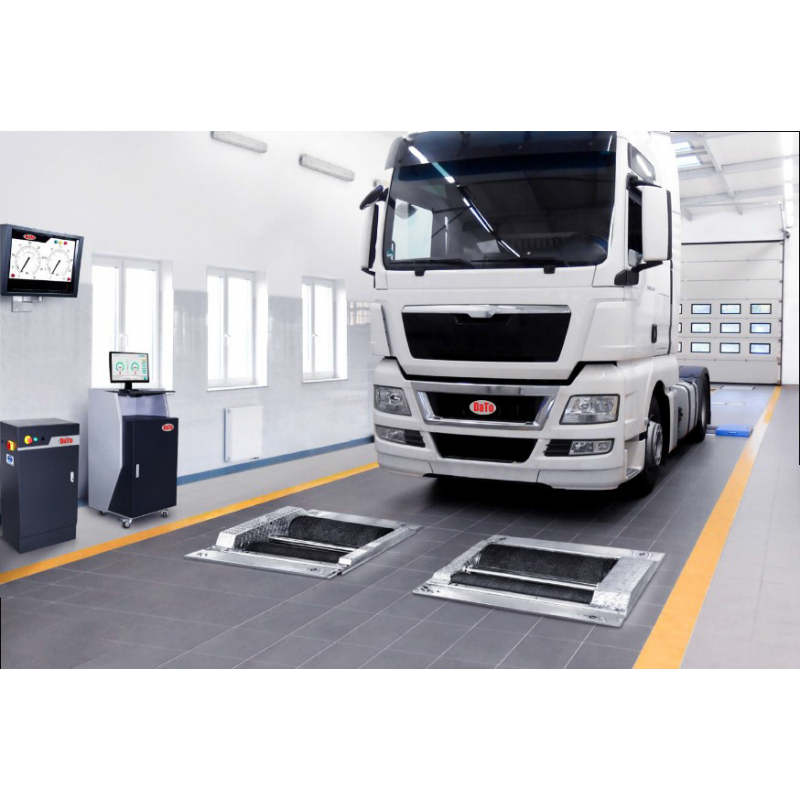

| Brake Tester | TLIB103 | TLIB110 | TLIB115 |
| Measurement Range (N) | 0-6000 | 0-40000 | 0-60000 |
| Wheel Tread (mm) | 1200-1800 | 1200-2400 | 1200-2600 |
| Wheel Diameter (mm) | 500-800 | 600-1100 | 700-1200 |
| Roller Demension (mm) | Φ200×700 | Φ280×990 | Φ280×1100 |
| Roller Speed (km/h) | 2.5/ 5.0 | 2.5 | 2.5 |
| Motor Power (kW) | 2.2/ 4.0 | 11 | 15 |
| Equipment Dimension (mm) | 2390x725x375 | 4850x920x420 | 5500x980x450 |
| Speedometer | KCS-3 | KCS-10 | KCS-15 |
| Measurement Speed (km/h) | 20-120 | 20-120 | 20-120 |
| Roller Dimension (mm) | Φ190×700 | Φ190×1000 | Φ265×1100 |
| Roller Center To Center (mm) | 380 | 450 | 500 |
| Euqipment Dimension (mm) | 2390x725x375 | 3200x860x440 | 3500x950x475 |

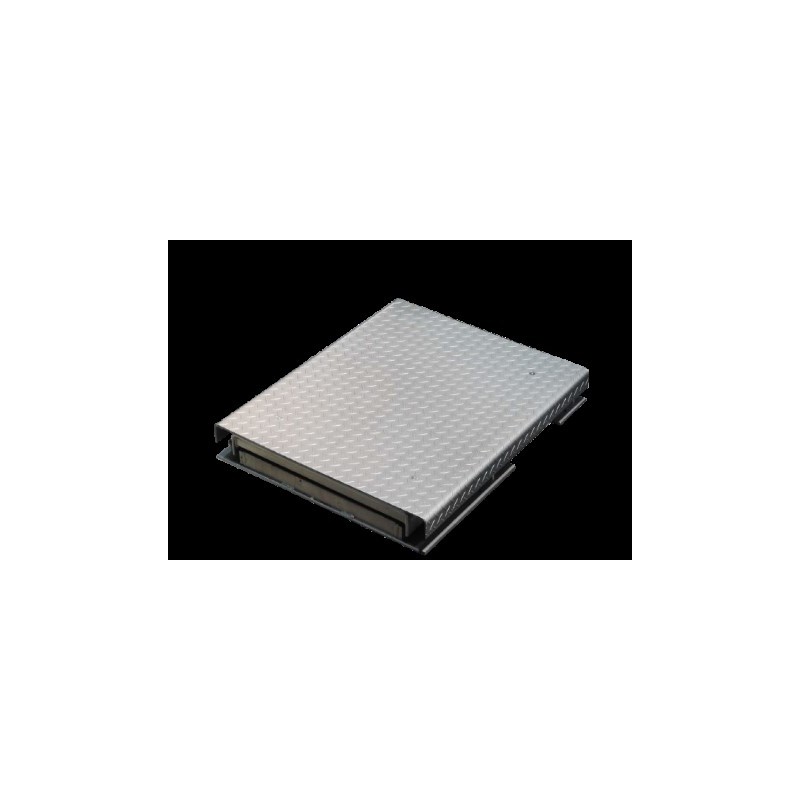

| Sideslip Tester | TLIS103 | TLIS110 | TLIS115 |
| Measurement Range (m/km) | ±15 | ±15 | ±15 |
| Wheel Tread (mm) | 900-1800 | 1000-2400 | 1000-2600 |
| Sideslip Plate Dimension (mm) | 700×500 | 1000×1000 | 1100×1000 |
| Equipment Dimension (mm) | 2390x660x240 | 3200x1160x250 | 3300x1200x280 |
| Axle Load Tester | TLIL103 | TLIL110 | TLIL115 |
| Measurement Range (kg) | 100-3000 | 200-10000 | 300-15000 |
| Max. Wheel Tread (mm) | 1800 | 2400 | 2600 |
| Weighing Plate Dimension (mm) | 2200×500 | 2800×600 | 2900×800 |
| Suspension Tester | TLIJ103 | — | — |
| Standard | EUSAMA | — | — |
| Vibrate Fre. / Oscil | 15Hz/ 6mm | — | — |
| Motor Power (kW) | 2.2×2 | — | — |
