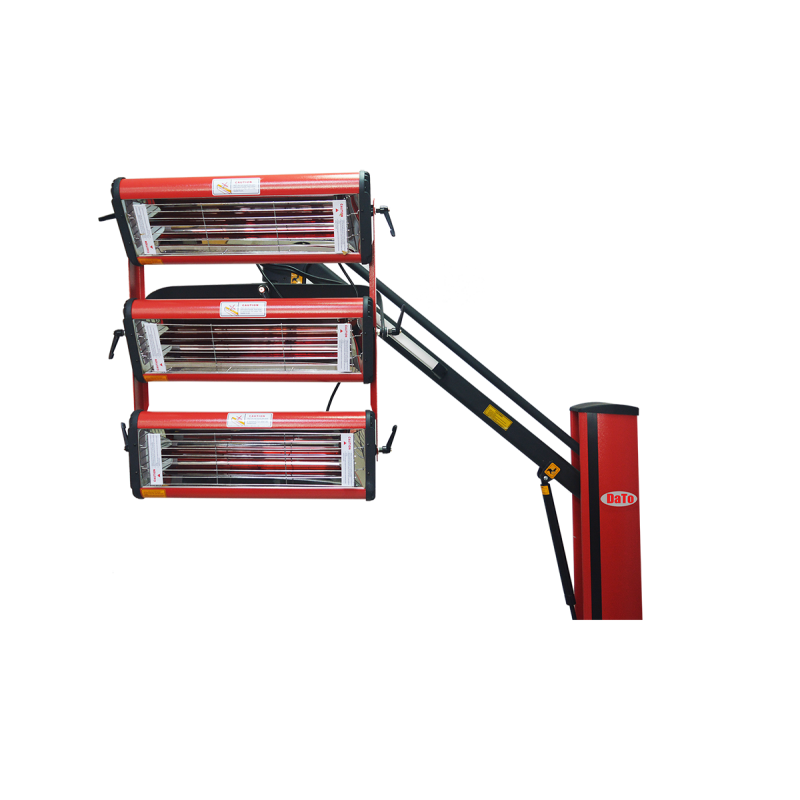

PCIRO301 – INFRA RED CURING LAMP
DaTo PCIRO301 Infra Red Curing Lamp is a technologically advanced paint drying system designed for fast and efficient curing of automotive paint coatings. Built with sturdy construction and fully automatic settings, the system provides precise temperature control and uniform heat distribution for superior paint finishing results.
Featuring adjustable temperature settings, automatic cut-off functionality, and high-performance infrared technology, this unit is an ideal Infra Red Curing Lamp in the UAE for professional automotive refinishing applications. It is widely used as a reliable paint curing lamp in Dubai system in body shops, paint booths, and vehicle repair centers.
Features
- Robust aluminum alloy construction with 304-grade stainless steel reflectors
• Equipped with VPower 21″ quartz short-wave infrared halogen lamps
• High power output for rapid paint curing

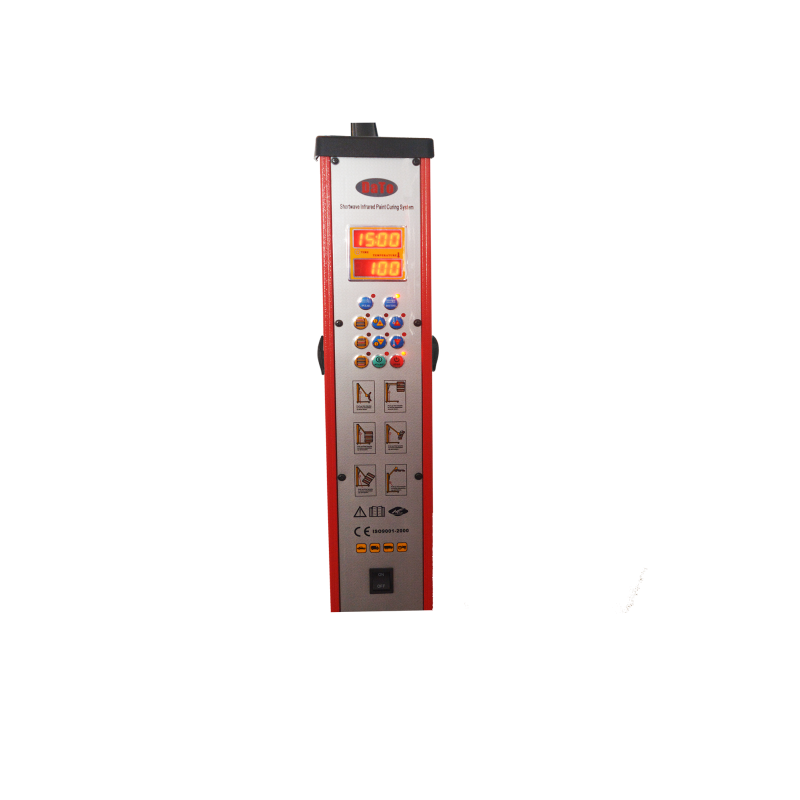

• Automatic operation with LED electronic timer and power settings
• Adjustable temperature control for different coating requirements
• Auto cut-off system for enhanced safety and efficiency
• Ideal for body shop drying equipment applications
• Suitable for professional IR paint dryer operations
Specifications
| Parameter | Details |
| Lifting System | Hydraulic lifter with an independent switch and 360° rotation |
| Special Function | Pulse ultrasonic paint curing |
| Input Power Supply | 220V – 50/60Hz |
| Infrared Tube Power | 3 × 1100W |
| Curing Area | 1200 × 1000 mm |
| Temperature Range | 40°C – 100°C |
| Timer Range | 0 – 99 Minutes |
| Protection | Automatic overload protection |
| Emitter Control | Each emitter independently controlled |
DaTo PCIRO301 delivers fast, consistent, and energy-efficient paint curing performance for modern automotive refinishing facilities. Its advanced infrared technology and user-friendly controls make it an excellent automotive paint booth lamp, helping workshops improve productivity and achieve high-quality paint finishing results.
