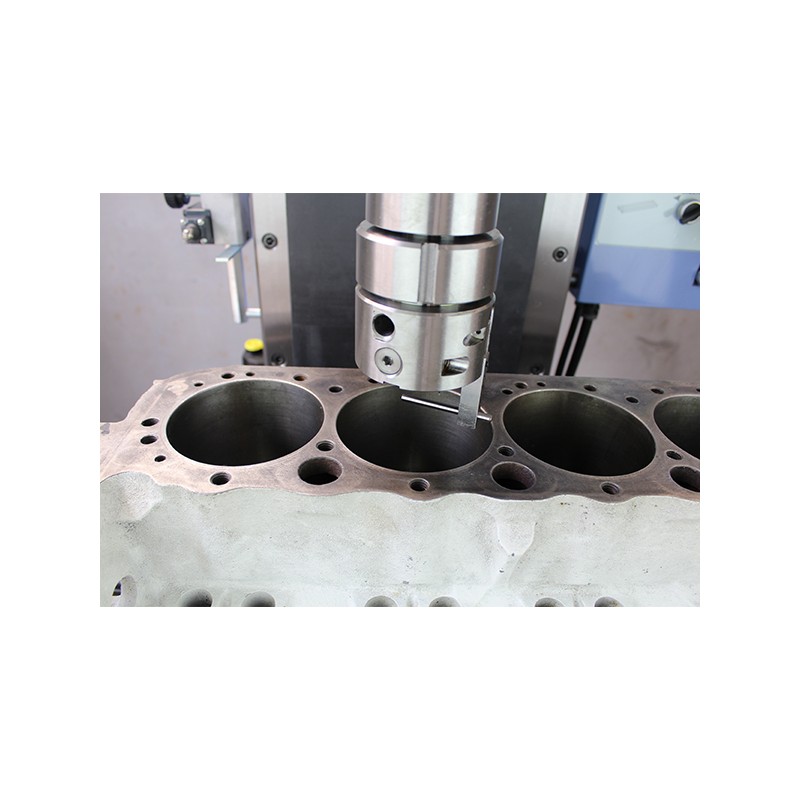

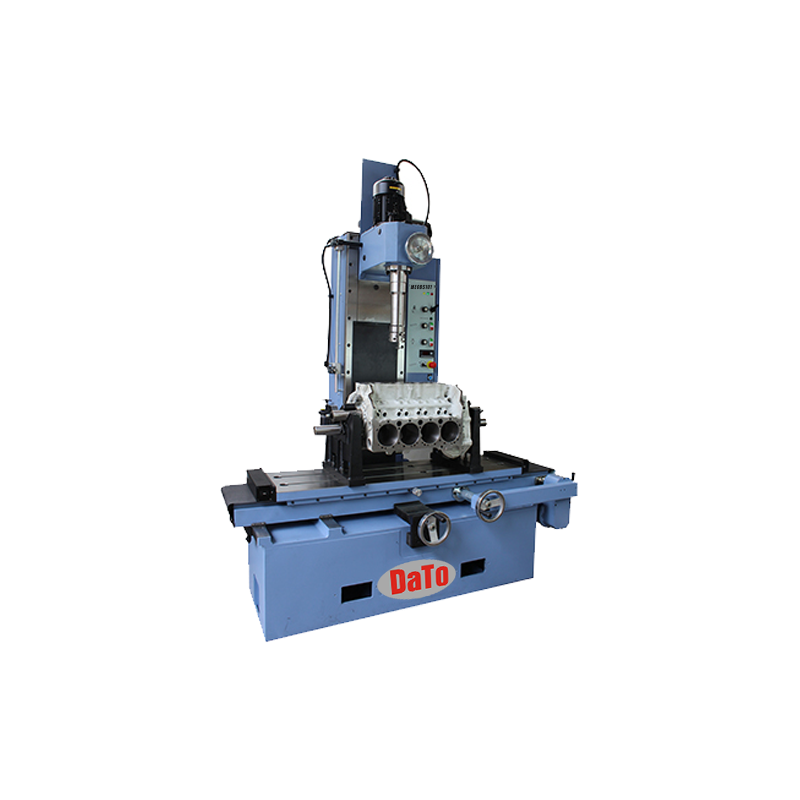

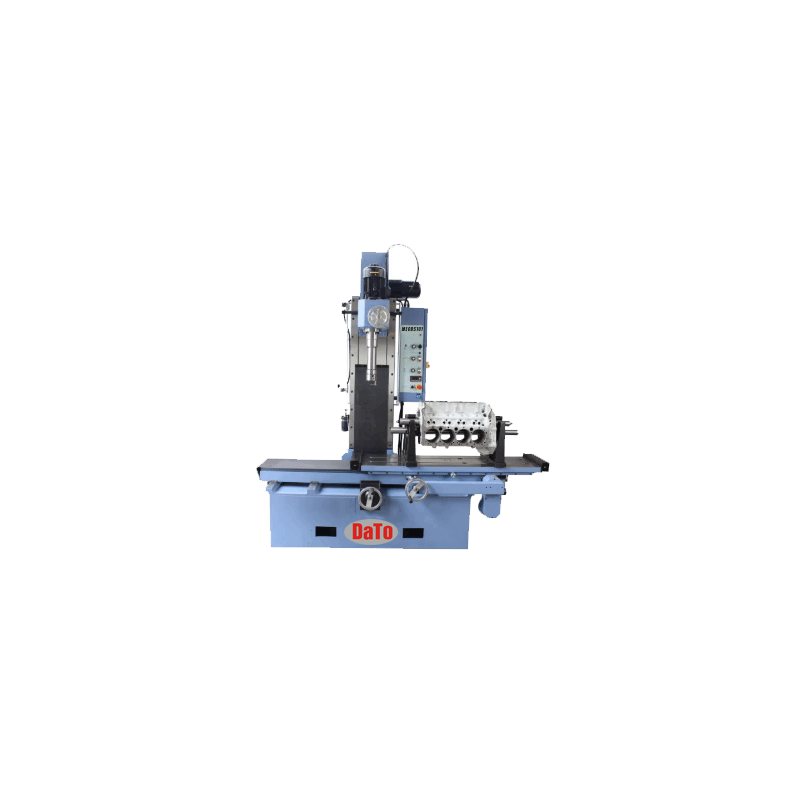

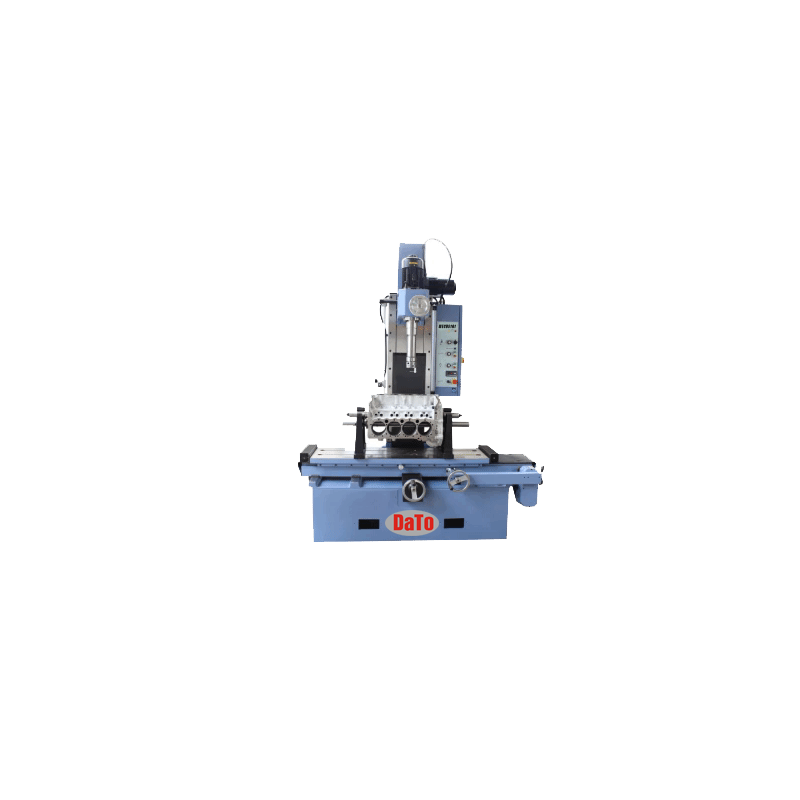

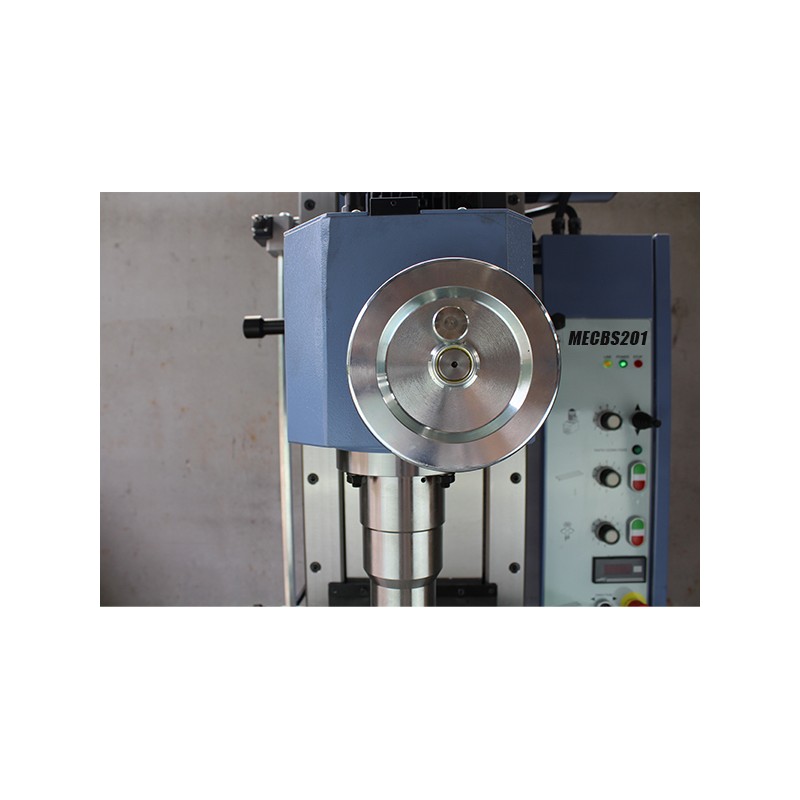

CYLINDER VERTICAL BORING SURFACING MACHINE – MECBS201
DaTo offers advanced machine tools and equipment for the reconditioning of engine components, including cylinder heads, engine blocks, valves, and other critical parts used in motorcycles, passenger cars, commercial vehicles, trucks, and marine engines.
The Cylinder Vertical Boring Surfacing Machine MECBS201 is a versatile solution designed to perform two essential engine rebuilding operations—cylinder boring and block resurfacing—in a single machine. Engineered for precision and productivity, this machine delivers performance levels typically found in larger, high-end models while maintaining a compact footprint suitable for modern workshops.
Widely used as an Engine Boring Machine UAE, the MECBS201 is ideal for automotive engine rebuilding centers, heavy-duty repair facilities, and machine shops seeking reliable and accurate machining capabilities. Its generous longitudinal and transverse table travel, combined with a substantial vertical head movement, enables efficient machining of a wide range of engine blocks.
The machine incorporates a proven mechanical structure with innovative engineering features that ensure exceptional machining accuracy, superior surface finishing, and long-term operational reliability. As a trusted choice for cylinder boring equipment Dubai, it helps workshops achieve consistent results while improving productivity and reducing turnaround times.
Whether you’re upgrading your automotive workshop machinery UAE or searching for a dependable vertical cylinder machine Dubai, the MECBS201 delivers the performance, precision, and flexibility required for professional engine reconditioning applications. It is an essential engine repair machine UAE for workshops specializing in engine overhauls, rebuilding, and restoration services.
Standard Features
- Adjustable spindle speed with digital indicator
- Adjustable boring bar feed
- Adjustable table feed (MECBS201 model)
- 1/2” CBN or PCD milling plate Ø320 mm
- Tool setting dial indicator with magnetic base
- Boring depth device with dial indicator
- Precision centering device with dial gauge
- Adjustable control stop
- PV0160 pair of parallel supports
- Complete wrench set
- Instruction manual
Specifications
| Parameter | Specification |
| Boring Range | 30 – 170 mm |
| Max Vertical Travel of Head | 670 mm |
| Distance from Head to Table | 370 – 1020 mm |
| Distance from Spindle Center to Column | 290 mm |
| Spindle Rotation Speed | 75 – 850 rpm |
| Boring Bar Feed | 0 – 175 mm/min |
| Table Surface | 1340 × 370 mm |
| Max Longitudinal Table Travel | 1200 mm |
| Max Transverse Table Travel | 200 mm |
| Table Feed | 0 – 460 mm/min |
| Spindle Motor Power | 1.5 kW |
| Rapid Feed Motor Power | 0.37 kW |
| Table Feed Motor Power | 0.55 kW |
| Dimensions (L × W × H) | 1860 × 1150 × 2170 mm |
| Net Weight | 1380 kg |
Applications
- Engine cylinder boring
- Cylinder block resurfacing
- Automotive engine rebuilding
- Commercial vehicle engine repair
- Heavy-duty truck engine reconditioning
- Marine engine overhaul workshops
- Precision engine machining facilities
Get Quote Today and equip your workshop with the MECBS201, a high-performance cylinder boring and resurfacing solution trusted by professionals across the UAE.
