EMISSION ANALYSER – VEA 401/ 501
Emission Analyzer in the UAE – Automotive Exhaust Gas Testing System

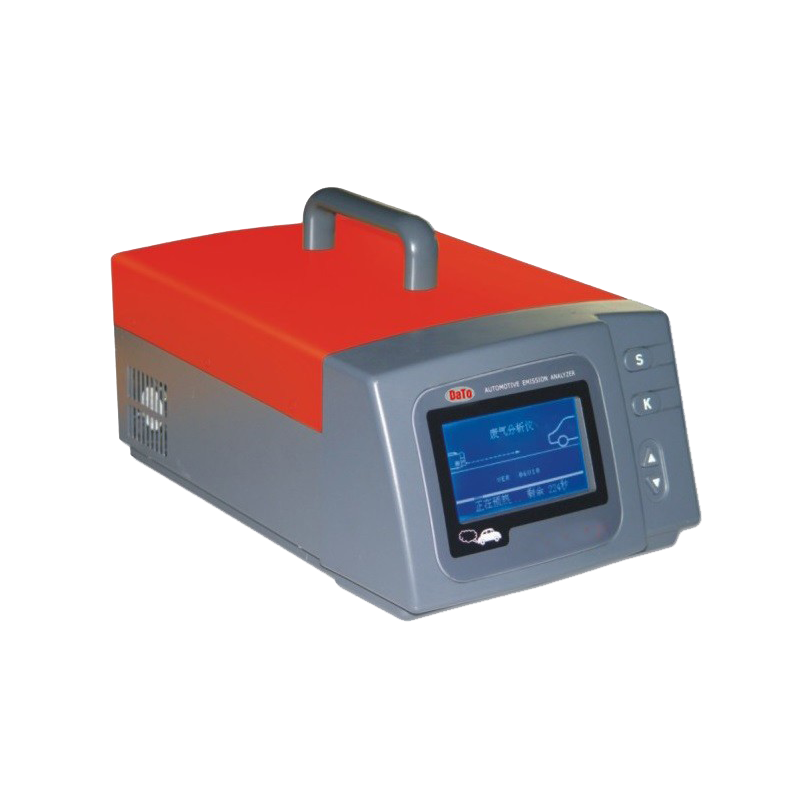

VEA 401 / 501 – Emission Analyser
The VEA 401/501 Emission Analyzer is a professional Emission Analyzer in the UAE designed for accurate measurement of vehicle exhaust gases including CO, HC, CO₂, O₂, and NO. It provides precise emission diagnostics using advanced infrared and electrochemical sensing technology.
As a reliable vehicle exhaust analyzer in Dubai, it delivers fast and accurate readings for automotive workshops, inspection centers, and environmental testing applications.
A dependable automotive emission testing in the UAE solution, it ensures compliance with international emission standards while offering stable performance and digital LCD interface.
As a high-precision gas analyzer machine in Dubai, it supports RPM and oil temperature measurement with optional accessories for extended diagnostic capability.
Ideal inspection station equipment in the UAE, it is widely used in vehicle testing centers, garages, and manufacturing facilities for emission verification and compliance testing.
SPECIFICATIONS
| Parameter | Details |
| HC Range | 0–10000 ppm |
| CO Range | 0–10% |
| CO₂ Range | 0–20% |
| O₂ Range | 0–25% |
| NO Range | 0–5000 ppm (VEA 501 only) |
| RPM Range | 300–8000 rpm |
| Oil Temp | 0–120°C |
| Resolution | HC 1 ppm, CO/CO₂/O₂ 0.01% |
| Operating Temp | +5°C to +40°C |
| Humidity | 5%–95% non-condensing |
| Power Supply | AC 110V ±15% |
| Warm-up Time | 10 minutes |
| Interface | RS-232C |
| Dimensions | 450 × 260 × 180 mm |
