CRMFL201- FLOOR TRACK DESIGN COLLISSION REPAIR SYSTEM
The CRMFL201 Floor Track Design Collision Repair System is a professional-grade Collision Repair System UAE designed for automotive body shops, denting centers, collision repair facilities, and vehicle restoration workshops. Engineered with a robust floor track platform design, this system delivers exceptional durability, precision, and operational flexibility for a wide range of structural repair applications.
Built to withstand demanding workshop environments, the system provides smooth 360-degree pulling capability, enabling technicians to perform vehicle repairs from multiple angles with maximum efficiency. This advanced body shop repair equipment Dubai solution incorporates two main pulling towers and two auxiliary pulling towers, allowing precise pulling operations for complex vehicle frame and chassis repairs.
Manufactured using high-grade steel and reinforced locking mechanisms, the CRMFL201 ensures superior structural strength, accurate positioning, and long-term reliability. As a dependable vehicle frame repair UAE solution, it offers excellent stability during repair operations while helping technicians restore damaged vehicle structures to factory specifications.
The integrated frame can be supplied either fully assembled or in modular sections to optimize shipping and installation requirements. Standard configurations include one manual hydraulic hand pump and one pneumatic pump, while an optional dual pneumatic pump setup is available for workshops requiring enhanced productivity. This versatile automotive collision tools Dubai system can be customized to suit specific operational requirements.
For precise chassis measurement and structural inspection, the integrated center lifting jack assembly and lifting bench provide convenient vehicle elevation during repair procedures. As a complete chassis alignment system UAE, the CRMFL201 supports accurate frame straightening, collision restoration, and vehicle alignment operations, making it an essential asset for professional automotive repair facilities.
Features
- Heavy-duty floor track collision repair platform
- 360-degree pulling flexibility for multi-angle repairs

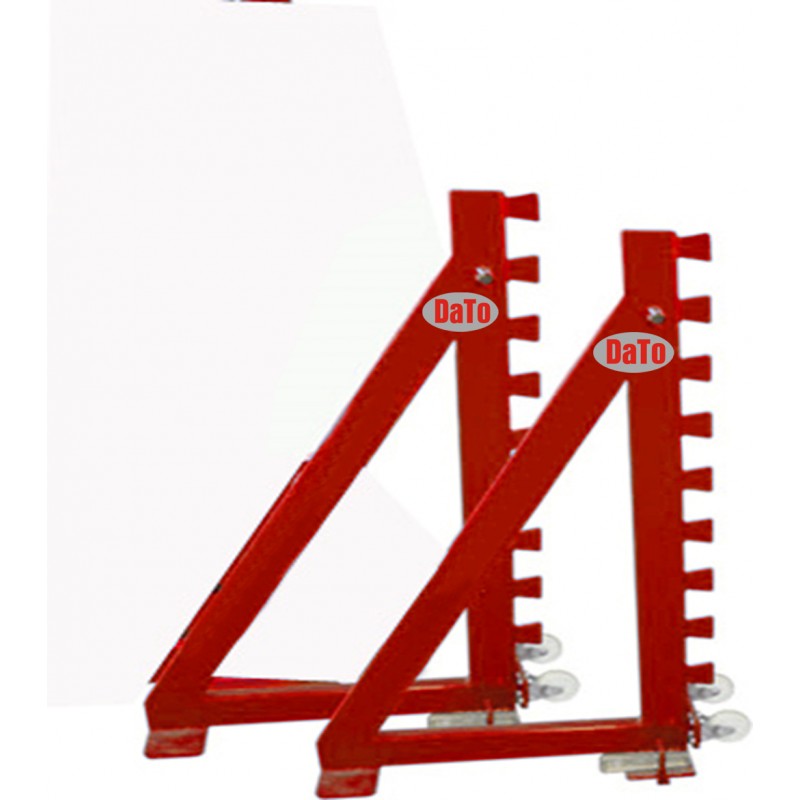

- Two main pulling towers and two auxiliary pulling towers
- High-grade steel construction for superior durability
- Reinforced locking points for enhanced safety and stability
- Precision-engineered positioning holes for accurate repairs
- Integrated center lifting jack assembly
- Vehicle lifting bench for measurement and inspection
- Available in assembled or modular shipping configurations

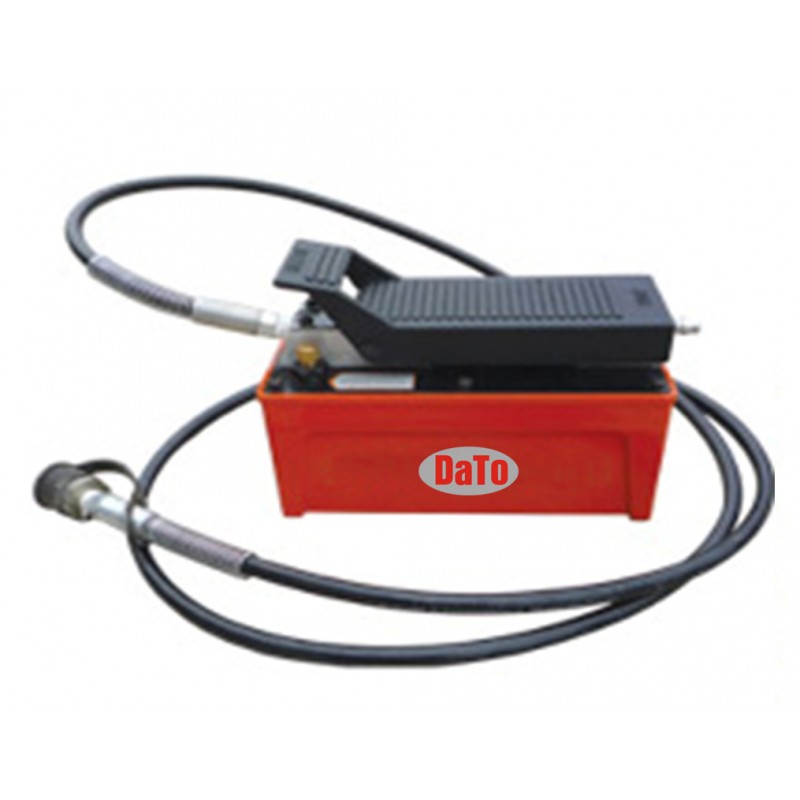

- Standard package includes manual hydraulic pump and pneumatic pump
- Optional dual pneumatic pump configuration
- Suitable for frame straightening, chassis alignment, and collision repair applications
Lifting Bench Specifications
| Parameter | Measurement |
| Length | 2260 mm |
| Width | 680 mm |
| Maximum Lifting Height | 1460 mm |
| Minimum Height | 280 mm |
| Lifting Capacity | 3000 kg |
| Power Supply | 380V / 3PH / 50Hz |
The CRMFL201 Collision Repair System UAE combines heavy-duty construction, flexible pulling capability, and precision alignment functionality, making it the ideal chassis alignment system UAE for modern automotive body shops and professional vehicle restoration facilities.
