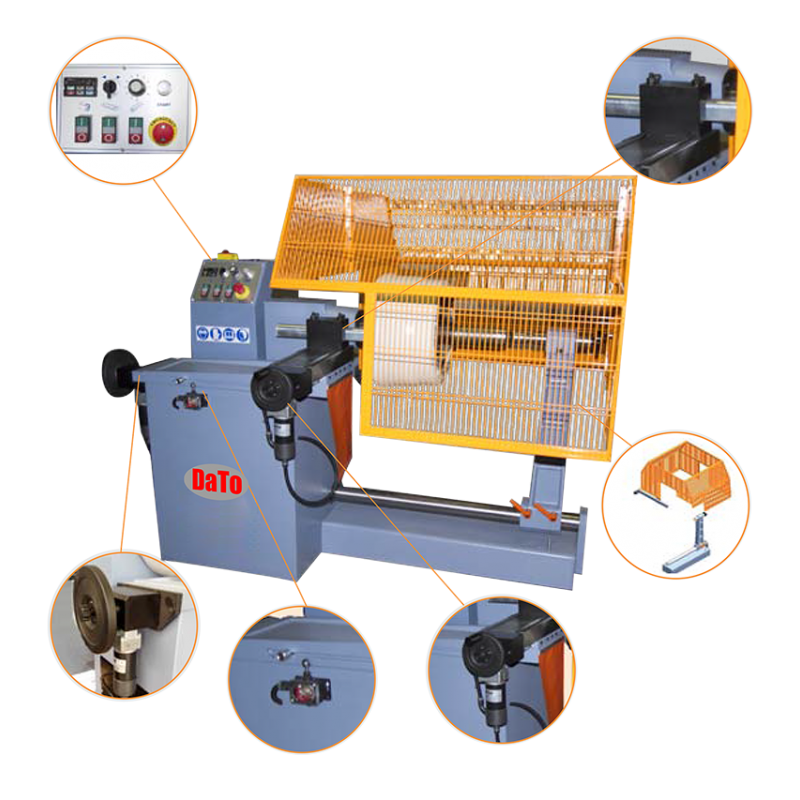

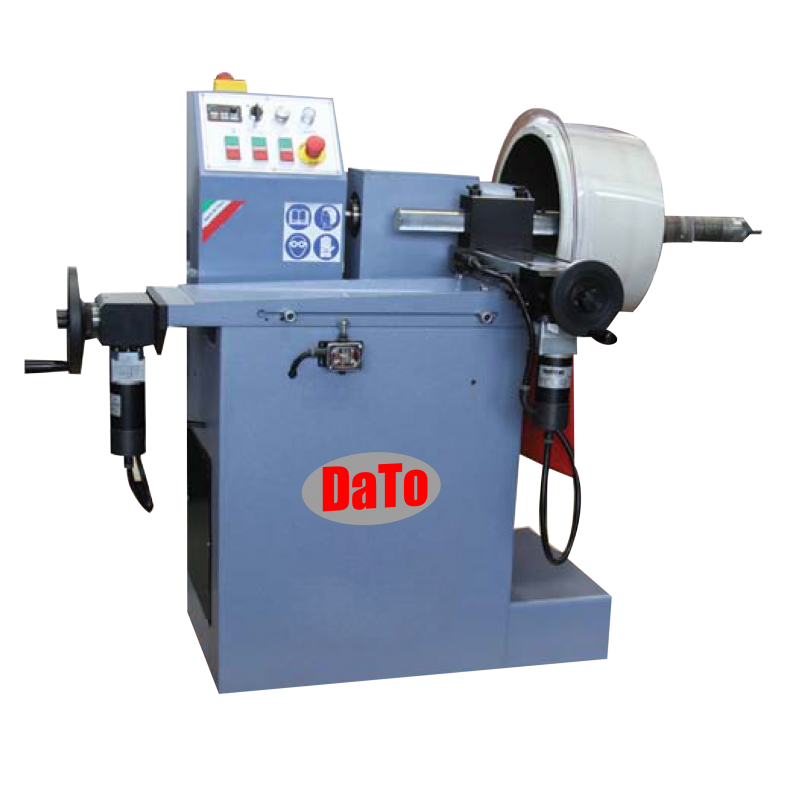

METSE301 – HEAVY DUTY BRAKE DISC AND DRUM LATHE FOR CARS AND TRUCKS
The METSE301 is a high-performance brake disc lathe that UAE workshops trust for precision resurfacing of brake discs, drums, and flywheels across passenger cars, commercial vehicles, and trucks. Engineered with a rigid, heavy-duty structure, a large 60 mm arbor, and a precision spindle assembly, it effectively minimizes vibration to deliver accurate machining and superior surface finishes. This advanced drum lathe machine, which Dubai service centers prefer, enables faster setup and operation without the need for a support tailstock, improving workshop efficiency. As reliable brake repair equipment in the UAE, the METSE301 is designed to meet the demands of modern service facilities, making it an essential addition to professional automotive workshop machinery setups in the UAE.
CONFIGURATION:
- Adjustable spindle speed with digital display
- Adjustable and intermittent feed on longitudinal table
- Integrated halogen spot light
- Boring bar support
- Boring bar for large drums
- Ø 20 mm drum turning insert tool holder
- Drum turning insert tool holder 12x12x80 mm
- Truck drum silencer band
- Safety guard
- Chip-collector tank
- Ø 60 mm shaft with nut and spanner
- Ø 60 mm spacers (4 pcs.)
- Centering cones (8 pcs.)
- Wrench set
- Instruction manual
SPECIFICATIONS
| Min-Max drum turning diameter | 150÷1170 mm |
| Min-Max disc turning diameter | 855 mm |
| Longitudinal table travel | 410 mm |
| Cross slide travel | 145 mm |
| Spindle rotation speed | 30÷120 rpm |
| Longitudinal table feed | 0÷30 mm/min |
| Cross slide feed | 0÷30 mm/min |
| Spindle motor power | 1.5 kW |
| Table motor power | 0.07 kW |
| Dimensions (LxWxH) | 1970x1400x1470 h |
| Weight | 655 kg |
