DLW3001 – 3D WHEEL ALIGNMENT – ROOF MOUNTABLE
DaTo DLW3001 is a unique and highly precise 3D Wheel Alignment System developed through extensive research, innovation, and engineering expertise. Equipped with an advanced Auto Track system and high-precision cameras, the machine delivers fast and accurate wheel alignment measurements for a wide range of vehicles.
The versatile camera column can be installed either as a floor-standing unit or mounted directly to the roof using the dedicated roof-mounting system, making it ideal for workshops with space optimization requirements. This flexibility, combined with its advanced technology, makes the DLW3001 an excellent Wheel Alignment Machine in the UAE for modern automotive service centers.
Designed for accuracy, efficiency, and ease of use, the DLW3001 is widely used as a professional 3D aligner in the Dubai system, helping workshops achieve precise alignment results and improved vehicle handling performance.
Features
- Advanced 3D wheel alignment technology
• High-precision camera measurement system
• Intelligent Auto Track functionality
• Roof-mountable or floor-standing installation options
• Fast and accurate alignment measurement process

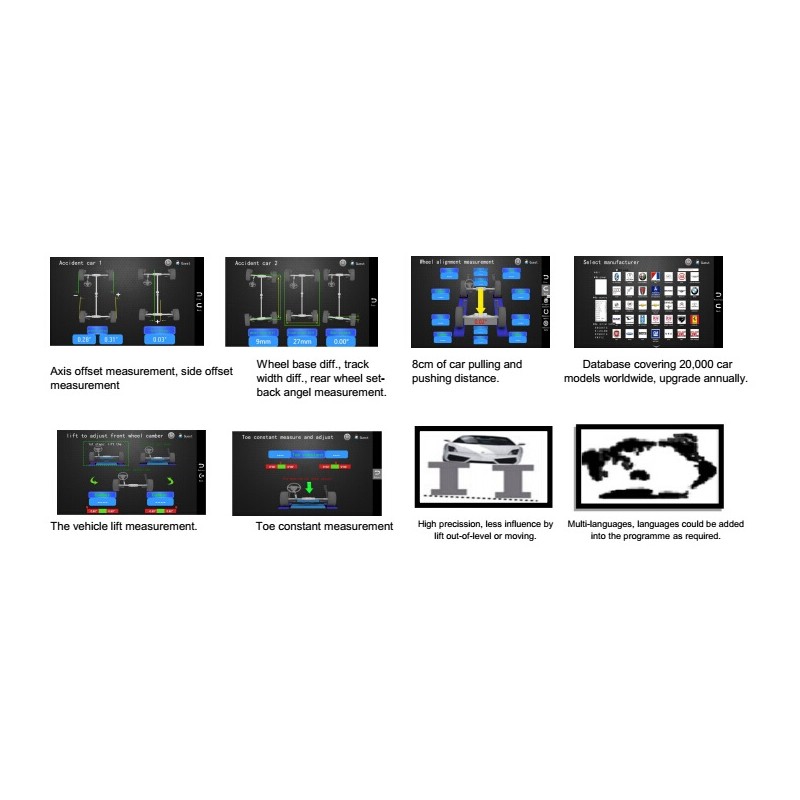

• User-friendly software interface
• Space-saving design for modern workshops
• Ideal for workshop alignment equipment in Dubai applications
• Suitable for professional auto wheel aligner in the UAE service centers
Specifications
| Parameter | Range | Precision |
| Total Toe | ±20° | ±0.02° |
| Individual Toe | ±20° | ±0.01° |
| Camber | ±12° | ±0.02° |
| Caster | ±25° | ±0.1° |
| KPI | ±25° | ±0.01° |
| Setback | ±9° | ±0.01° |
| Thrust Angle | ±9° | ±0.01° |
| Track Width | 1200 – 1700 mm | — |
| Wheelbase | 1800 – 3600 mm | — |
| Voltage | 110/220V, 50/60Hz, 1Ph | — |
Packing Information
| Description | Details |
| Package 1 | 1230 × 850 × 1350 mm |
| Package 2 | 3088 × 490 × 490 mm |
| Total Weight | 200 kg |
DaTo DLW3001 combines advanced camera technology, intelligent tracking capabilities, and flexible installation options to deliver superior alignment performance. It is an ideal choice for workshops seeking reliable Wheel Alignment Machine in the UAE solutions and high-precision 3D aligner in Dubai systems. As part of comprehensive workshop alignment equipment in Dubai, it helps improve vehicle handling, tire life, and service quality while supporting professional auto wheel aligner in the UAE operations.
