DLW3002 – 3D WHEEL ALIGNMENT

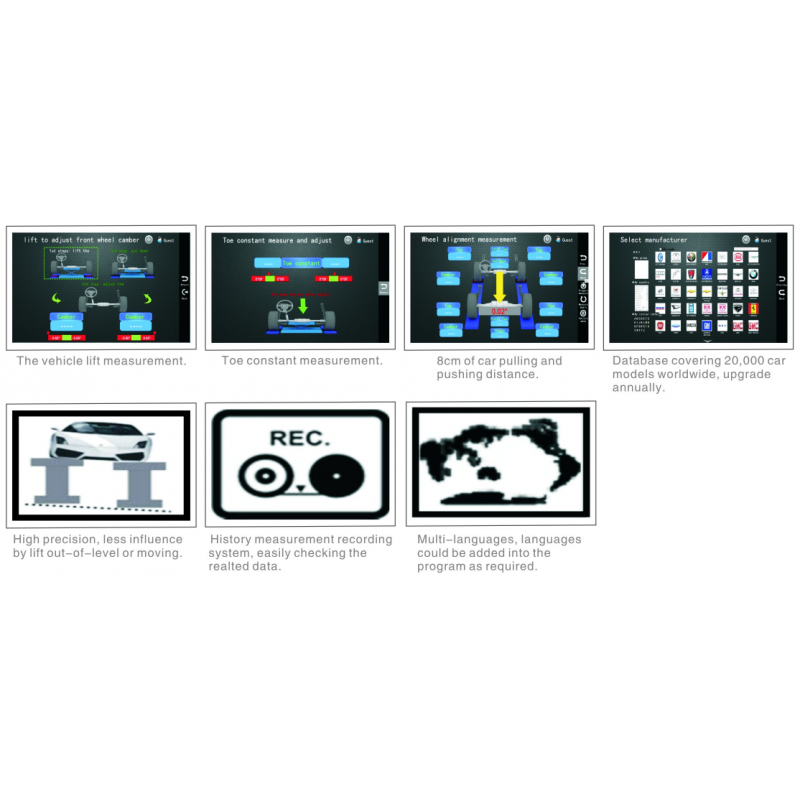

The DLW3002 is a high-precision wheel alignment UAE solution engineered to deliver accurate and dependable alignment results for modern automotive workshops. Equipped with advanced 3D imaging technology and intelligent software, this automotive alignment system in the UAE ensures fast vehicle measurements with minimal car movement, improving workshop efficiency. Its calibration-free design reduces maintenance requirements, while real-time video guidance and multi-language support enhance operator convenience. Featuring specialized alignment functions for selected Audi and Volkswagen models and a continuously updated database of over 20,000 vehicle models, it is an ideal tyre alignment machine that Dubai workshops can depend on. The system also supports comprehensive wheel balancing and alignment UAE services, helping maintain optimal vehicle handling, tyre life, and driving safety.
| PARAMETERS | RANGE | PRECISION | ||
| Total Toe | ±20° | ±0.02° | ||
| Individual Toe | ±20° | ±0.01° | ||
| Camber | ±12° | ±0.02° | ||
| Caster | ±25° | ±0.01° | ||
| KPI | ±25° | ±0.01° | ||
| Setback | ±9° | ±0.01° | ||
| Thrust Angle | ±9° | ±0.01° | ||
| Track Width | 1200-1700mm | |||
| Wheelbase | 1800-3600mm | |||
| Voltage | 110/220V, 50/60Hz, 1Ph | |||
| Dimension | 2 PKGS | 950*850*1350mm
3088*490*490mm |
200 KGS | |
